Here’s a sneak peek at my latest bowie and a necker. There’s a few pics (below).

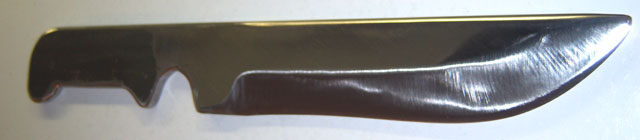

Here it is rough cut and ground from 1095 bar stock (1/4" thick x 2" wide stock).

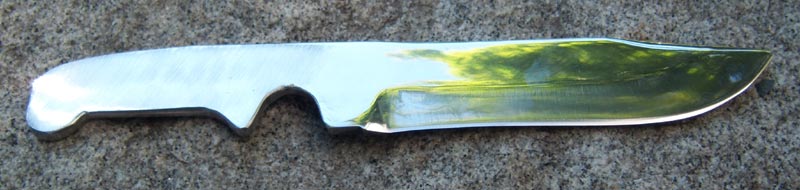

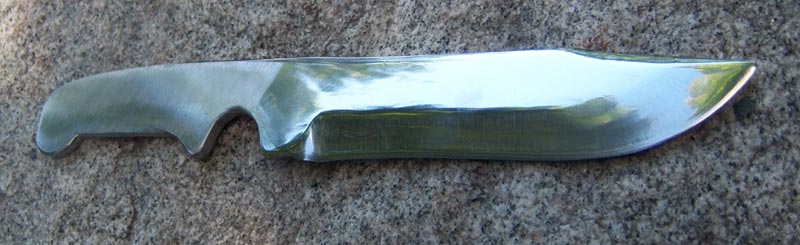

Here it is after some final shaping and clean up...

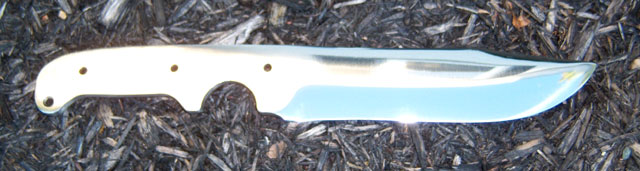

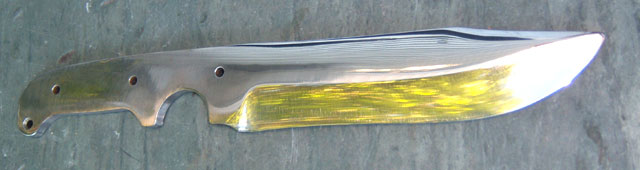

Handle drilled for scales and lanyard...

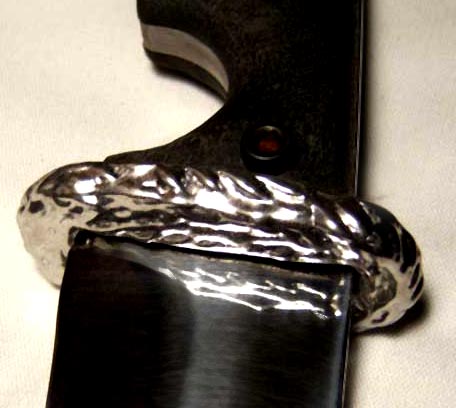

Here's a close-up of a guard I'm working on. It's a metal casting in a lead-free pewter alloy. I've been using a Lee lead furnace to accomplish the melt, and making clay molds to pour into. This is not finalized, but gives an idea of what I'm trying to accomplish.

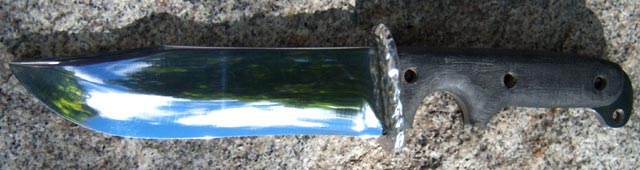

I just did the final heat treating and I'm doing a good bit of buffing to bring it to mirror finish. I had to think about it for a while before I heat treated... that probably negates any chances of engraving the blade. I do have some mask material and acid etch solution, so I may try my hand at some custom etching. Maybe some filigree and my makers mark. Just what I need... another hobby.

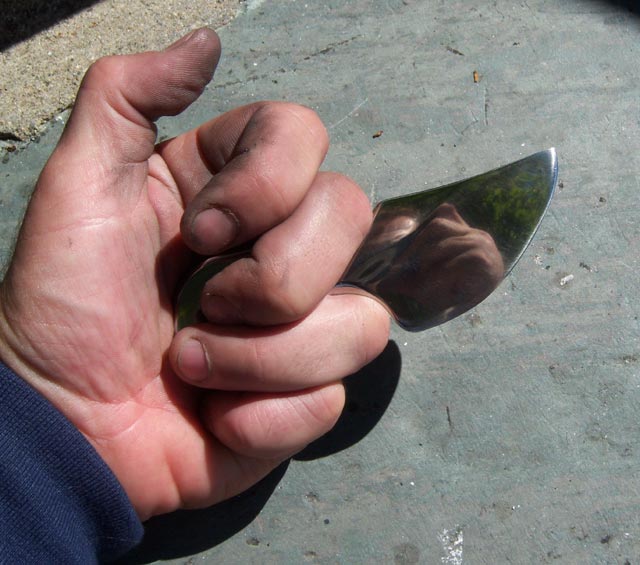

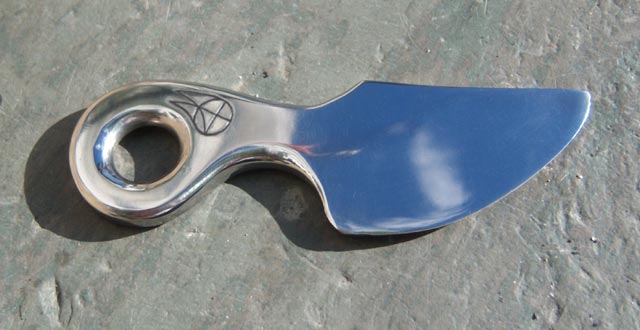

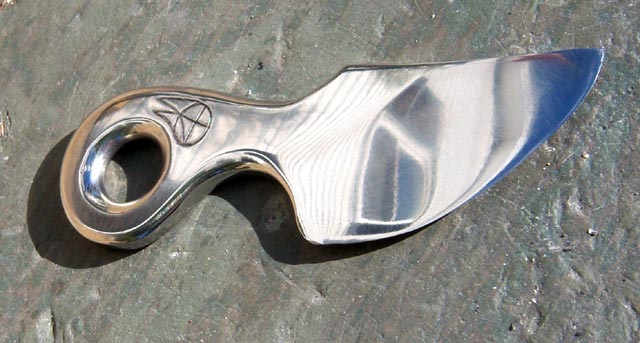

And here’s the custom necker I just finished. It’s ATS 34, so it won’t rust on me. It’s also ¼” thick which is absurdly thick for a necker, but it feels nice and hefty in the hand. It’s also scary sharp.
Makers marks are simple Dremel engravings with a carbide bit.
More to come..
-M40-
